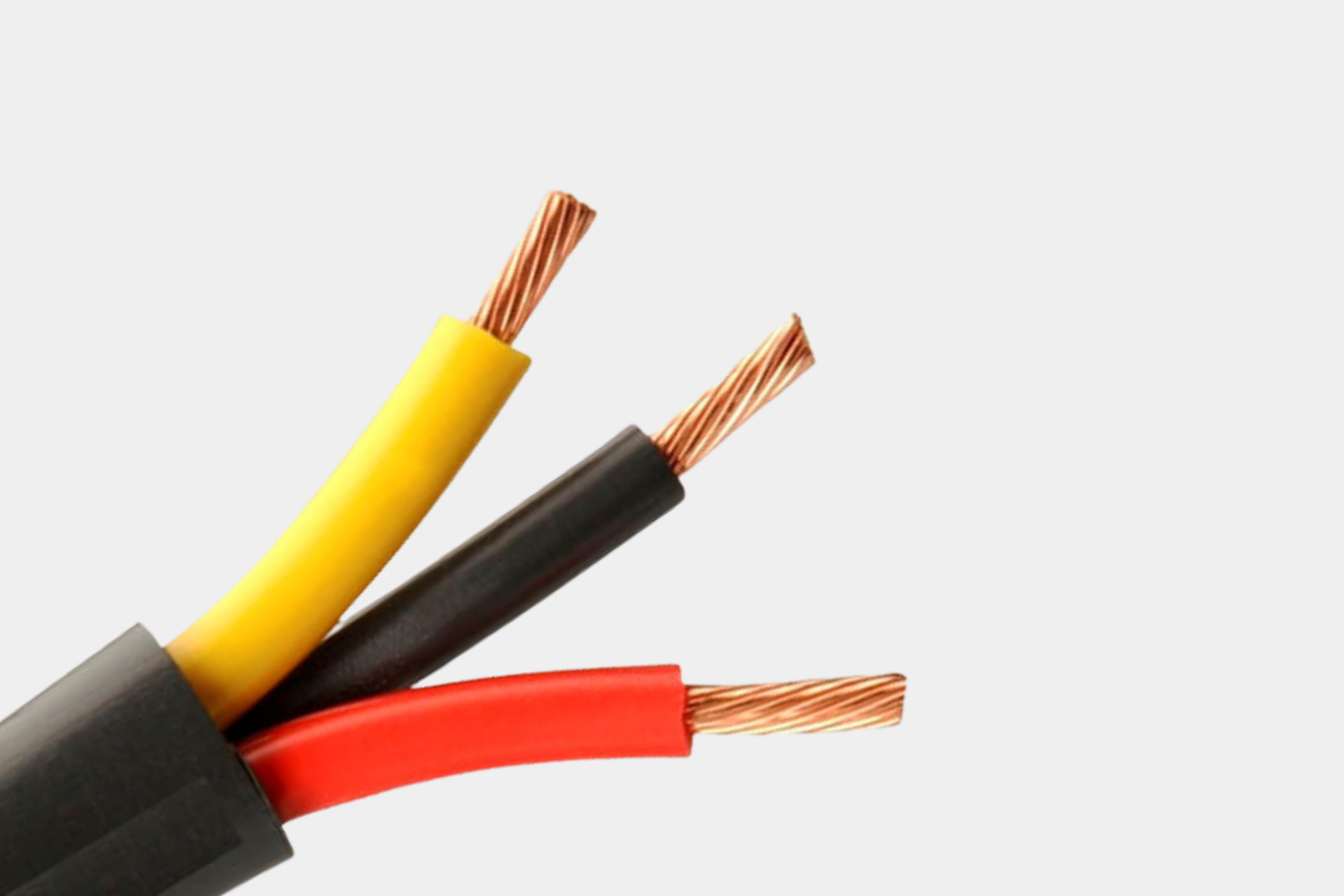

MULTICORE ROUND CABLES UPTO 24 CORE

MULTICORE ROUND CABLES UPTO 24 CORE

Ensuring a constant power supply is crucial, and RCI Electricals offers both single-core and multicore cables for various applications. Single-core cables find common use in domestic settings, while multicore cables are preferred in space-constrained environments like medical equipment, aircraft, entertainment venues, theaters, and heavy industries. RCI Electricals cables, whether single or multicore, exhibit durability and heat resistance, remaining unaffected even in extreme conditions.

Features

Manufactured from 99.97% pure bare copper conductors, these cables provide low conductor resistance. The insulation, made from RCI Electricals specially formulated PVC compound, ensures protection against oils, greases, chemicals, and abrasions, contributing to a long life and electrical safety.

Applications

Multicore cables are versatile and find application in control panels for heavy industries, heavy machinery, air-conditioning, motors, and more.

Conductor

Electrolytic grade copper conductor meeting IS: 8130 – 1984 Flexibility Class 2 and 5.

Insulation

• PVC Type A of IS: 5831 – 1984 for a maximum conductor temperature of 70°C.
• PVC Type C of IS: 5831-1984 for a maximum conductor temperature of 85°C.

Colour of Insulation

• Two Core Cable: Red & Black
• Three Core Cable: Red, Black & Green
• Five Core Cable: Red, Yellow, Blue, Black & Grey
• Six Core and Above: Two adjacent cores in each layer blue and yellow, remaining cores grey.

Laying-Up

The cores are laid up with a suitable right-hand lay.

Outer Sheath

• PVC Type ST-1 of IS: 5831-1984 for a maximum conductor temperature of 70°C.
• PVC Type ST-2 of IS: 5831-1984 for a maximum conductor temperature of 85°C.

Application

The laid-up cores shall be provided with an outer sheath applied by extrusion.

Thickness of Outer Sheath

The average thickness of the outer sheath of unarmored cables shall not be less than the nominal value specified. The smallest of the measured values shall not be less than 0.2 mm + 0.2 t1, where t1 is the nominal thickness of the sheath.

Colour of Outer Sheath

The outer sheath's color shall be black, although colors other than black may be used by agreement between the purchaser and the supplier.
